AXIA

Specifications

• Adult Occupant Protection
• Child Occupant Protection
• Variant Availability

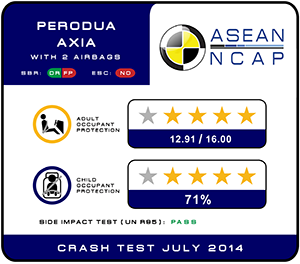

ITEM	SCORE

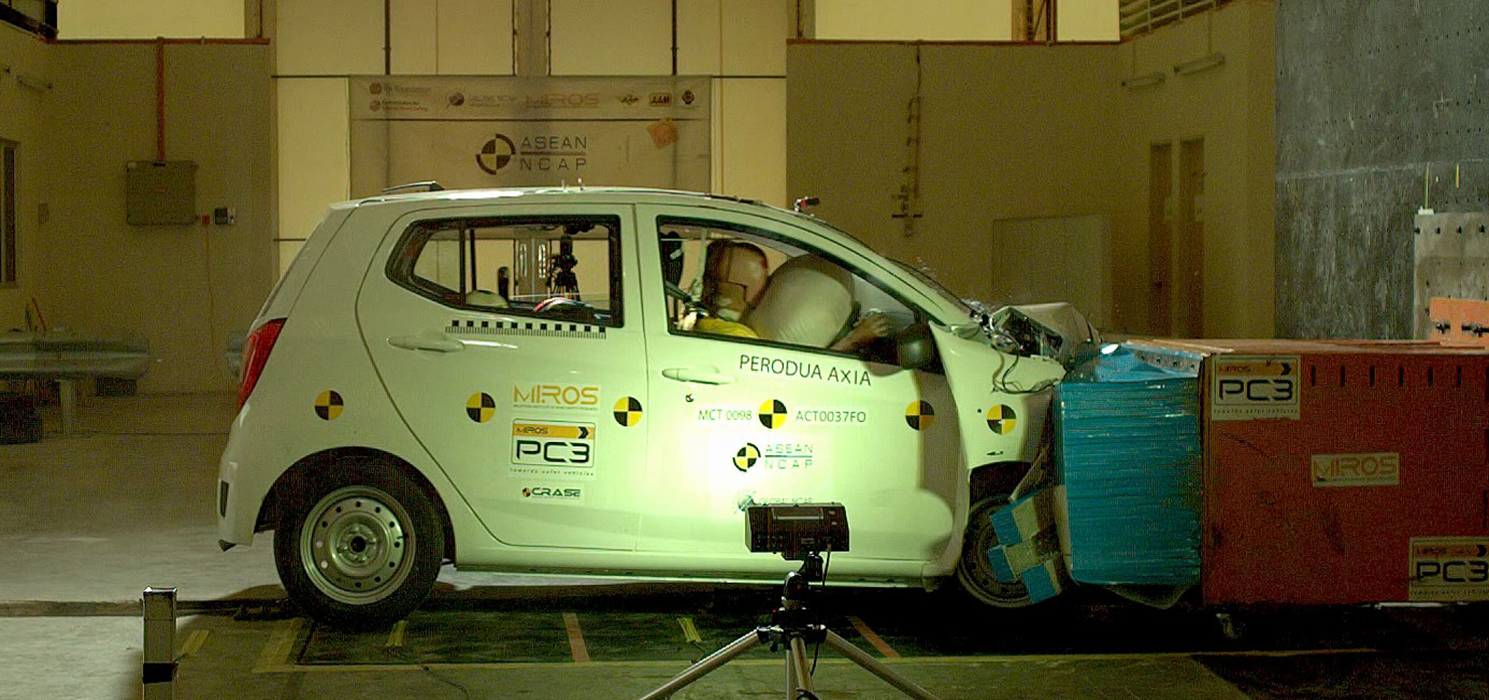

OFFSET FRONTAL TEST	12.91
SIDE IMPACT TEST	PASS
HEAD PROTECTION TECHNOLOGY EVALUATION*	NA

*Score calculated based on Fitment Rating System

PASSIVE SAFETY
DRIVER AIRBAG	NS	NS	NS	NS	S	NS	NS	NS	NS	NS
FRONT PASSENGER AIRBAG	NS	NS	NS	NS	S	NS	NS	NS	NS	NS
CURTAIN AIRBAG	NS	NS	NS	NS	X	NS	NS	NS	NS	NS
SIDE AIRBAG	NS	NS	NS	NS	X	NS	NS	NS	NS	NS
SEATBELT RETRACTOR & LOAD LIMITER - DRIVER	NS	NS	NS	NS	S	NS	NS	NS	NS	NS
SEATBELT RETRACTOR & LOAD LIMITER - PASSENGER	NS	NS	NS	NS	S	NS	NS	NS	NS	NS

S : Standard on all variants,    O : Optional on base; Standard on higher variants,     X: Not Available ,    TBA: To be Advised, NS : Not Sold

CRS TYPE	P3	P1.5
ATTACHMENT	ISOFIX + TOP TETHER	ISOFIX
BRAND	BRITAX DUO PLUS	BRITAX BABY SAFE PLUS SHR II BRITAX BABY SAFE ISOFIX BASE

DYNAMIC TEST (max. 24)	CRS BASED ASSESSMENT (max. 12)	VEHICLE BASED ASSESSMENT (max. 13)	TOTAL (max. 49)	COMPLIANCE (%)
17.62	12	5	34.62	71



TESTED VARIANT ORIGIN	MALAYSIA	FOR	MALAYSIA
OTHER ASIAN PRODUCTION (ALL VARIANTS)	MALAYSIA	FOR	MALAYSIA
